Slotted Screen Pipes (Filter)

Well Screen Pipes
fILTERED / SLOTTED

Well Screen Pipes

Hasspipe U-PVC slotted screen pipes provide efficient groundwater filtration, high durability, and full compatibility with well casing systems for effective sand control.

Key Features

High open area for maximum yield
Precision slot cutting
Custom slot sizes available
Bridge slot option for gravel pack
Continuous slot for fine aquifers
Compatible with all casing series

Applications

U-PVC slotted screen pipes PVC well screen pipe groundwater filtration pipes sand control well screens borehole filter pipes
Get a Quote Download Datasheet
Slotted Screen (Filter) Pipes
Technical Data

Complete Specifications

Produced according to DIN 4925 and TS 11794.

Slot Width (mm) Description Recommended Gravel Pack Size
0.50 mm Fine filtration 1-2 mm gravel
0.75 mm Standard filtration 2-3 mm gravel
1.00 mm Medium filtration 3-5 mm gravel
2.0 mm High flow filtration Coarse gravel

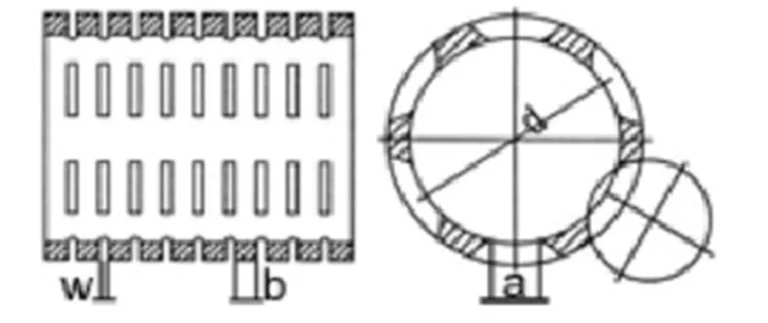

Our slotted screens are engineered according to TS 11794 standards and are available in slot widths of 0.50, 0.75, 1.00, and 2.00 mm. These transverse slots, precision-cut perpendicular to the pipe axis, are optimized to ensure maximum water inflow and ideal filtration within the well.

Alternative Connection System Available

Also available with solvent cement joints for permanent, leak-proof connections.
